Rotary tillers

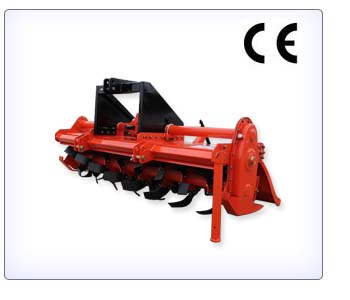

  HL 65-90HP
HL 65-90HP Features
•  The powerful large sized side gear is used
•  The new conceptual hightech steel materials are used
•  The heatsink wings for the gear box and the window
   for an oil lactoscope is attached
•  Possible to install various blades fit into the soils and
   working environments
•  A driving axle of harrow breaking used a special group
   sealing for a completely wareproof
    Rotarvator (HL series)
※4 SPEED GEAR
Model Drive Working Width HP Weight N.Blade N.Flange Total Length Width Height
cm inc min max Kg Lbs cm inc cm inc cm inc
GMR205HL SIDE
GEAR
205 80 65 80 530 1175 48 8 99 40 222 87 141 56
GMR215HL 215 85 75 85 535 1185 48 8 99 40 230 90 141 56
GMR220HL 220 87 80 105 545 1205 54 9 99 40 240 95 141 56
GMR230HL 280 90 85 110 560 1240 54 9 99 40 250 100 141 56
GMR240HL 300 95 90 110 570 1260 60 10 99 40 260 105 141 56
  * We reserve the right to change any eguipment specification. design, or meterials without notice.
